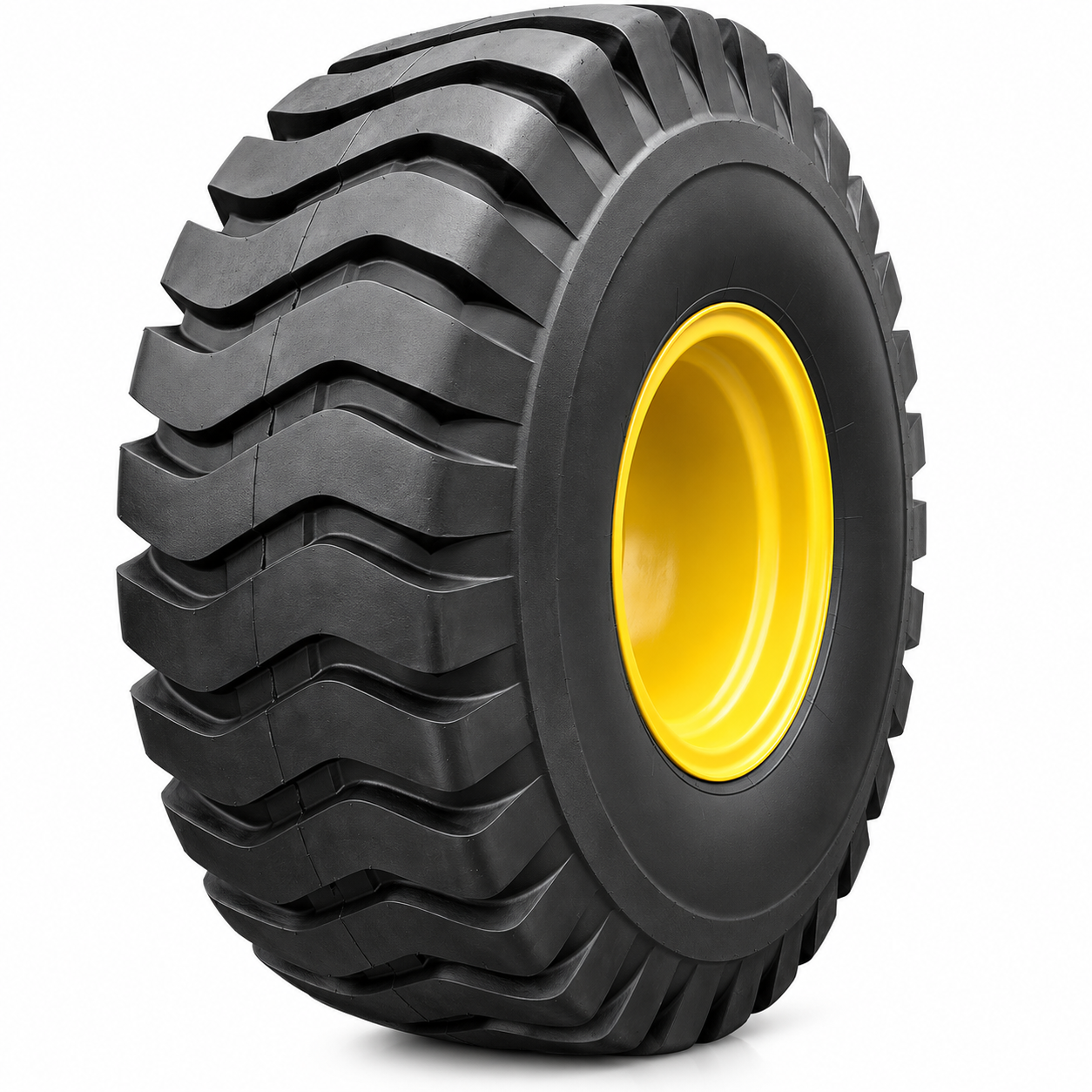

L3/E3-A Heavy-Duty Loader & Earthmover OTR Tire

L3/E3-A OTR Tire for Wheel Loaders & Earthmoving Trucks

The KOYOOTO L3/E3-A is a premium dual-purpose OTR tire engineered for exceptional traction and durability on wheel loaders (L3) and heavy earthmoving dump trucks (E3). Featuring a specialized rock-standard tread layout (Pattern A) and a heavy-duty reinforced casing, the L3/E3-A provides superior stability, cut resistance, and long-lasting tread life across construction sites, stone quarries, and open-pit mining operations.

Key Performance Advantages

Optimized Rock-Tread Geometry (Pattern A): Designed for balanced weight distribution, minimal tread wear, and high traction on rugged rock and gravel surfaces.
Dual-Purpose Load & Haul Performance: Handles heavy digging and lifting forces on wheel loaders while ensuring heat dissipation during medium-distance truck haulage.
Puncture & Cut Resistant Compound: High-grade rubber matrix resists sharp rock impacts, stone drilling, and severe tread tearing.
Self-Cleaning Tread Voids: Wide, directional grooves clear mud and debris rapidly to maintain uninterrupted ground grip and operational efficiency.

Technical Specifications

Parameter	Specification
Pattern Standard	L3 / E3-A (Standard Rock Pattern)
Category	Bias / Radial OTR Tire
Compatible Equipment	Wheel Loaders, Rigid Dump Trucks, Articulated Dumpers, Heavy Dozers
Operating Environments	Quarries, Open-Pit Mines, Infrastructure Sites, Aggregates & Earthmoving Projects

SIZE	PR	PATTERN CODE	Rim type	OVERALL DIAMETER (mm)	SECTION WIDTH (mm)	RELEVANT PRESSURE (kpa) 10Km/H	MAX LOADING (kg) 10km/H
7.50-16	8PR	E-3/L-3A	6.00G	810	215	250	650
8.25-16	10PR	E-3/L-3A	6.50H	885	235	280	970
9.00-16	10PR	E-3/L-3A	6.50H	834	225	310	1080
9.00-20	14PR	E-3/L-3A	7.00	1018	259	810	2500
10.00-16	12PR	E-3/L-3A	W8L	910	275	310	1090
11.00-16	12PR	E-3/L-3A	W10L	884	244	320	1100
12.00-16	12PR	E-3/L-3A	8.5	884	244	320	1100
14/90-16	12PR	E-3/L-3A	8.5	896	215	290	1245
16/70-16	14PR	E-3/L-3A	8.5H	870	260	390	1055
16/90-16	14PR	E-3/L-3A	8.5H	870	260	390	1055
16/70-20	16PR	E-3/L-3A	13.00	1075	410	350	3375
16/70-24	16PR	E-3/L-3A	13.00	1175	410	450	3350
20.5/70-16	14PR	E-3/L-3A	8.5H	1075	410	350	2850
23.5/70-16	14PR	E-3/L-3A	8.5H	1075	410	350	2850
15.5-25	16PR	E-3/L-3A	12.00/1.3	1275	395	225	6750
17.5-25	16PR	E-3/L-3A	14.00/1.5	1350	445	475	7300
17.5-25	20PR	E-3/L-3A	14.00/1.5	1350	445	575	8250
20.5-25	20PR	E-3/L-3A	17.00/2.0	1490	520	450	9500
20.5-25	24PR	E-3/L-3A	17.00/2.0	1490	520	525	10300
23.5-25	20PR	E-3/L-3A	19.50/2.5	1615	595	375	10900
23.5-25	24PR	E-3/L-3A	19.50/2.5	1615	595	475	12500
23.5-25	28PR	E-3/L-3A	19.50/2.5	1615	595	550	13600
26.5-25	24PR	E-3/L-3A	22.00/3.0	1750	675	400	14000
26.5-25	28PR	E-3/L-3A	22.00/3.0	1750	675	475	15500
26.5-25	32PR	E-3/L-3A	22.00/3.0	1750	675	550	17000
29.5-25	28PR	E-3/L-3A	25.00/3.5	1875	750	425	17500
29.5-25	32PR	E-3/L-3A	25.00/3.5	1875	750	475	18800
29.5-29	32PR	E-3/L-3A	25.00/3.5	1975	750	500	19000
29.5-29	40PR	E-3/L-3A	25.00/3.5	1975	750	625	23600
13.00-24	12PR	E-3/L-3A	10.00W	1301	351	450	3875
14.00-20	24PR	E-3/L-3A	10.00W	1245	375	890	8500
14.00-24	16PR	E-3/L-3A	10.00W	1370	375	550	7300
14.00-24	20PR	E-3/L-3A	10.00W	1370	375	700	8500
14.00-24	24PR	E-3/L-3A	10.00W	1370	375	850	9500
14.0024	28PR	E-3/L-3A	10.00W	1370	375	925	10000
14.00-25	24PR	E-3/L-3A	10.00/1.5	1370	375	850	9500
14.00-25	28PR	E-3/L-3A	10.00/1.5	1370	375	925	10000
14.00-25	32PR	E-3/L-3A	10.00/1.5	1370	375	950	10375
16.00-24	24PR	E-3/L-3A	11.25/2.0	1495	430	650	10600
16.00-24	28PR	E-3/L-3A	11.25/2.0	1495	430	750	11500
16.00-25	28PR	E-3/L-3A	11.25/2.0	1495	430	750	11500
16.00-25	32PR	E-3/L-3A	11.25/2.0	1495	430	875	12500
18.00-24	32PR	E-3/L-3A	13.00/25	1615	500	750	15000
18.00-25	32PR	E-3/L-3A	13.00/25	1615	500	750	15000
