| SIZE | PR | PATTERN CODE | Rim type | OVERALL DIAMETER (mm) |
SECTION WIDTH (mm) |
RELEVANT PRESSURE (kpa) 10Km/H |
MAX LOADING (kg) 10km/H |
| 7.50-16 | 8PR | E-3/L-3A | 6.00G | 810 | 215 | 250 | 650 |
| 8.25-16 | 10PR | E-3/L-3A | 6.50H | 885 | 235 | 280 | 970 |
| 9.00-16 | 10PR | E-3/L-3A | 6.50H | 834 | 225 | 310 | 1080 |
| 9.00-20 | 14PR | E-3/L-3A | 7.00 | 1018 | 259 | 810 | 2500 |
| 10.00-16 | 12PR | E-3/L-3A | W8L | 910 | 275 | 310 | 1090 |
| 11.00-16 | 12PR | E-3/L-3A | W10L | 884 | 244 | 320 | 1100 |
| 12.00-16 | 12PR | E-3/L-3A | 8.5 | 884 | 244 | 320 | 1100 |
| 14/90-16 | 12PR | E-3/L-3A | 8.5 | 896 | 215 | 290 | 1245 |
| 16/70-16 | 14PR | E-3/L-3A | 8.5H | 870 | 260 | 390 | 1055 |
| 16/90-16 | 14PR | E-3/L-3A | 8.5H | 870 | 260 | 390 | 1055 |
| 16/70-20 | 16PR | E-3/L-3A | 13.00 | 1075 | 410 | 350 | 3375 |
| 16/70-24 | 16PR | E-3/L-3A | 13.00 | 1175 | 410 | 450 | 3350 |
| 20.5/70-16 | 14PR | E-3/L-3A | 8.5H | 1075 | 410 | 350 | 2850 |
| 23.5/70-16 | 14PR | E-3/L-3A | 8.5H | 1075 | 410 | 350 | 2850 |
| 15.5-25 | 16PR | E-3/L-3A | 12.00/1.3 | 1275 | 395 | 225 | 6750 |
| 17.5-25 | 16PR | E-3/L-3A | 14.00/1.5 | 1350 | 445 | 475 | 7300 |
| 17.5-25 | 20PR | E-3/L-3A | 14.00/1.5 | 1350 | 445 | 575 | 8250 |
| 20.5-25 | 20PR | E-3/L-3A | 17.00/2.0 | 1490 | 520 | 450 | 9500 |
| 20.5-25 | 24PR | E-3/L-3A | 17.00/2.0 | 1490 | 520 | 525 | 10300 |
| 23.5-25 | 20PR | E-3/L-3A | 19.50/2.5 | 1615 | 595 | 375 | 10900 |
| 23.5-25 | 24PR | E-3/L-3A | 19.50/2.5 | 1615 | 595 | 475 | 12500 |
| 23.5-25 | 28PR | E-3/L-3A | 19.50/2.5 | 1615 | 595 | 550 | 13600 |
| 26.5-25 | 24PR | E-3/L-3A | 22.00/3.0 | 1750 | 675 | 400 | 14000 |
| 26.5-25 | 28PR | E-3/L-3A | 22.00/3.0 | 1750 | 675 | 475 | 15500 |
| 26.5-25 | 32PR | E-3/L-3A | 22.00/3.0 | 1750 | 675 | 550 | 17000 |
| 29.5-25 | 28PR | E-3/L-3A | 25.00/3.5 | 1875 | 750 | 425 | 17500 |
| 29.5-25 | 32PR | E-3/L-3A | 25.00/3.5 | 1875 | 750 | 475 | 18800 |
| 29.5-29 | 32PR | E-3/L-3A | 25.00/3.5 | 1975 | 750 | 500 | 19000 |
| 29.5-29 | 40PR | E-3/L-3A | 25.00/3.5 | 1975 | 750 | 625 | 23600 |
| 13.00-24 | 12PR | E-3/L-3A | 10.00W | 1301 | 351 | 450 | 3875 |
| 14.00-20 | 24PR | E-3/L-3A | 10.00W | 1245 | 375 | 890 | 8500 |
| 14.00-24 | 16PR | E-3/L-3A | 10.00W | 1370 | 375 | 550 | 7300 |
| 14.00-24 | 20PR | E-3/L-3A | 10.00W | 1370 | 375 | 700 | 8500 |
| 14.00-24 | 24PR | E-3/L-3A | 10.00W | 1370 | 375 | 850 | 9500 |
| 14.0024 | 28PR | E-3/L-3A | 10.00W | 1370 | 375 | 925 | 10000 |
| 14.00-25 | 24PR | E-3/L-3A | 10.00/1.5 | 1370 | 375 | 850 | 9500 |
| 14.00-25 | 28PR | E-3/L-3A | 10.00/1.5 | 1370 | 375 | 925 | 10000 |
| 14.00-25 | 32PR | E-3/L-3A | 10.00/1.5 | 1370 | 375 | 950 | 10375 |
| 16.00-24 | 24PR | E-3/L-3A | 11.25/2.0 | 1495 | 430 | 650 | 10600 |
| 16.00-24 | 28PR | E-3/L-3A | 11.25/2.0 | 1495 | 430 | 750 | 11500 |
| 16.00-25 | 28PR | E-3/L-3A | 11.25/2.0 | 1495 | 430 | 750 | 11500 |
| 16.00-25 | 32PR | E-3/L-3A | 11.25/2.0 | 1495 | 430 | 875 | 12500 |
| 18.00-24 | 32PR | E-3/L-3A | 13.00/25 | 1615 | 500 | 750 | 15000 |
| 18.00-25 | 32PR | E-3/L-3A | 13.00/25 | 1615 | 500 | 750 | 15000 |

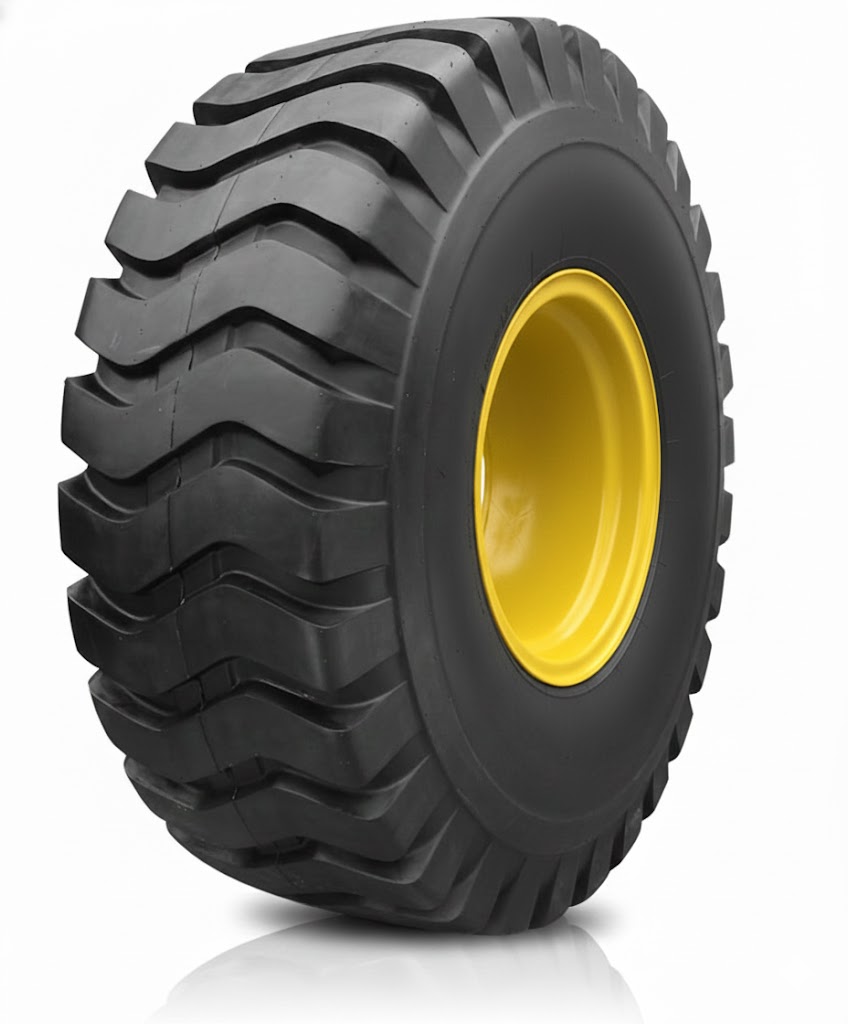

L3-E3-A
- This undirectional tread pattern and high-strength carcass structure design have excellent traction performance and easy operation performance.
- The tread adopts low heat-generating, cutting-resistant and wear-resistant formula, which has good cutting-resistant, wear-resistant and heat-resistant properties.
- It is suitable for loaders and wheeled bulldozers operating under various conditions in mining areas and quarries.
L3-E3-A
