| SIZE | PR | PATTERN CODE | RIM TYPE | OVERALL DIAMETER (mm) | SECTION WIDTH (mm) | RELEVANT PRESSURE (kpa) | MAX LOADING (kg) |
| 5.00-12 | 6PR | R1-1 | 4.00E | 590 | 145 | 200 | 280 |
| 5.50-17 | 10PR | R1-1 | 4.00E | 735 | 150 | 280 | 400 |
| 6.00-12 | 6PR | R1-1 | 4.50E | 640 | 165 | 250 | 405 |
| 6.00-14 | 6PR | R1-1 | 4.50E | 690 | 165 | 250 | 450 |
| 6.00-16 | 8PR | R1-1 | 4.50E | 745 | 165 | 250 | 495 |
| 6.50-16 | 8PR | R1-1 | 5.00F | 760 | 180 | 250 | 565 |
| 7.50-16 | 8PR | R1-1 | 5.00F | 810 | 205 | 210 | 650 |
| 7.50-20 | 8PR | R1-1 | 5.00F | 910 | 205 | 210 | 760 |
| 8.3-20 | 6PR | R1-1 | W7 | 895 | 210 | 240 | 695 |
| 8.3-24 | 8PR | R1-1 | W7 | 995 | 210 | 240 | 810 |
| 8.5-20 | 8PR | R1-1 | W7 | 895 | 210 | 230 | 705 |
| 9.5-20 | 8PR | R1-1 | W8 | 950 | 240 | 280 | 955 |
| 9.5-24 | 8PR | R1-1 | W8 | 1050 | 240 | 280 | 1076 |
| 9.5-28 | 8PR | R1-1 | W8 | 1140 | 240 | 280 | 1185 |
| 9.5-32 | 8PR | R1-1 | W8 | 1250 | 240 | 280 | 1260 |
| 10.00-15 | 8PR | R1-1 | 9.0*15.3 | 855 | 276 | 240 | 1425 |
| 10/75-15.3 | 10PR | R1-1 | 9.0 | 760 | 264 | 390 | 1090 |
| 11-32 | 10PR | R1-1 | W10 | 1360 | 305 | 140 | 1000 |
| 11-38 | 10PR | R1-1 | W10 | 1540 | 305 | 160 | 1545 |
| 11.2-24 | 10PR | R1-3 | W10 | 1105 | 285 | 180 | 1045 |
| 11.2-28 | 10PR | R1-1 | W10 | 1205 | 285 | 240 | 1305 |
| 11.2-38 | 10PR | R1-1 | W10 | 1459 | 285 | 120 | 1055 |
| 12-38 | 10PR | R1-1 | DW11 | 1575 | 330 | 220 | 1800 |
| 12.4-24 | 10PR | R1-2 | W11 | 1160 | 315 | 230 | 1415 |
| 12.4-28 | 10PR | R1-2 | W11 | 1260 | 315 | 1510 | 230 |
| 13.6-24 | 10PR | R1-3 | W12 | 1210 | 345 | 250 | 1790 |
| 13.6-28 | 10PR | R1-3 | W12 | 1310 | 345 | 250 | 1910 |
| 13.6-38 | 10PR | R1-2 | W12 | 1565 | 345 | 250 | 2215 |
| 14.9-24 | 10PR | R1-3 | W13 | 1265 | 378 | 230 | 1990 |
| 14.9-26 | 10PR | R1-2 | W13 | 1315 | 378 | 230 | 2055 |
| 14.9-28 | 10PR | R1-2 | W13 | 1365 | 378 | 230 | 2120 |
| 14.9-30 | 10PR | R1-2 | W13 | 1415 | 378 | 230 | 2190 |
| 15.5/80-24 | 10PR | R1-2 | W13 | 1240 | 394 | 300 | 2900 |
| 15.5-38 | 10PR | R1-3 | W14L | 1570 | 395 | 230 | 2320 |
| 16.9-24 | 10PR | R1-2 | W15L | 1335 | 430 | 200 | 2230 |
| 16.9-28 | 10PR | R1-2 | W15L | 1435 | 430 | 200 | 2380 |
| 16.9-30 | 10PR | R1-2 | W15L | 1485 | 430 | 200 | 2455 |
| 16.9-34 | 10PR | R1-2 | W15L | 1585 | 430 | 200 | 2605 |
| 16.9-38 | 10PR | R1-2 | W15L | 1685 | 430 | 200 | 2760 |
| 18.4-26 | 12PR | R1-2 | DW16 | 1450 | 467 | 230 | 2985 |
| 18.4-30 | 12PR | R1-2 | W16L | 1550 | 467 | 180 | 2815 |
| 18.4-34 | 12PR | R1-2 | W16L | 1655 | 467 | 230 | 3375 |
| 18.4-38 | 12PR | R1-2 | W16L | 1755 | 467 | 230 | 3575 |
| 20.8-38 | 10PR | R1-2 | W18L | 1835 | 528 | 160 | 3475 |
| 23.1-26 | 12PR | R1-2 | DW20 | 1605 | 587 | 170 | 3610 |

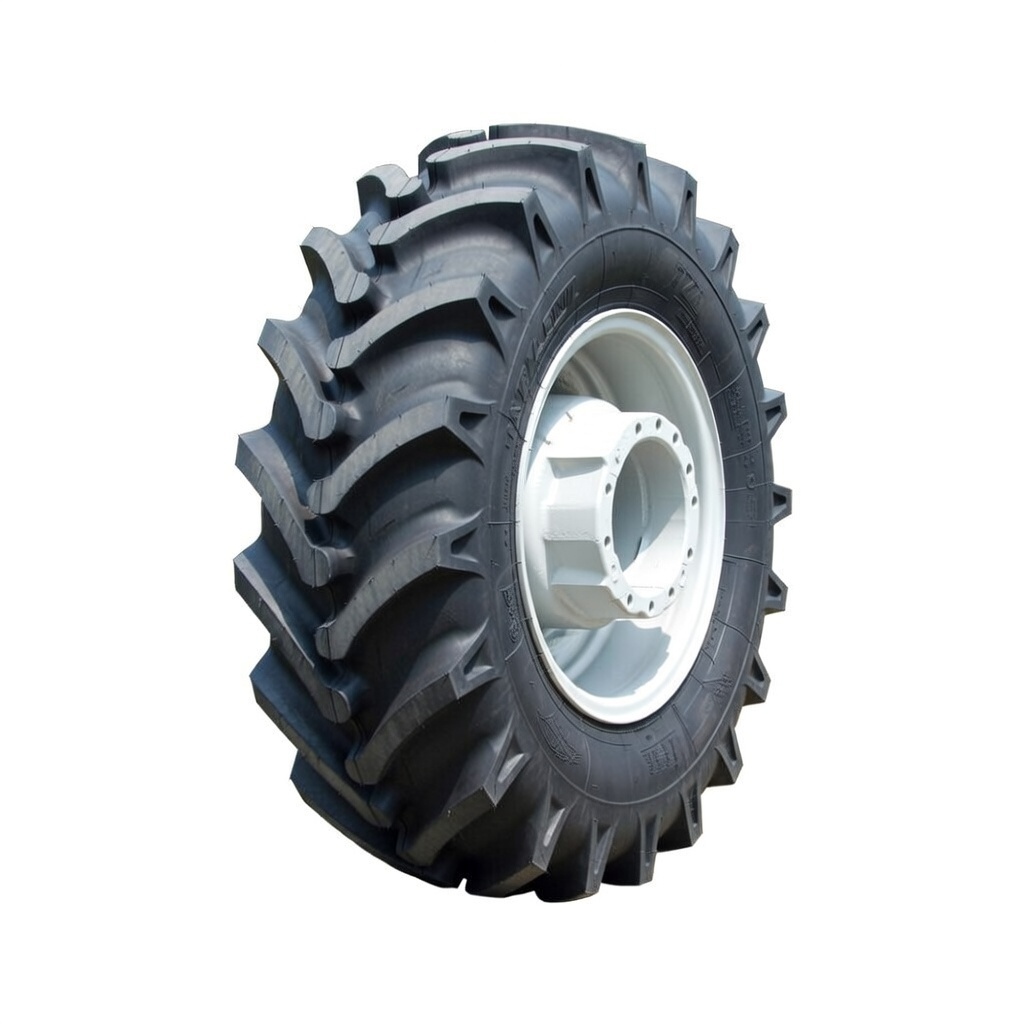

R1-1 Standard Lug Agricultural Tractor Tyre | R1-1 Farm Drive Tire for General Field & Road Use, Fits John Deere/Massey Ferguson/Case/New Holland/Kubota
Premium R1-1 Standard Lug Drive Tyre for General Purpose Farming
The R1-1 series is the ultimate workhorse for agricultural tractors. Designed for superior traction and long-lasting durability, these tires provide reliable pulling power in a wide variety of soil conditions and road environments.
-
Powerful Grip: The standard R1-1 lug pattern provides exceptional drive and holding power, ensuring maximum productivity in the field.
-
Advanced Self-Cleaning: A reasonable pattern tilt angle ensures mud and debris are shed quickly, maintaining consistent traction.
-
Enhanced Cut Resistance: Specially formulated tread compounds protect the tire against sharp stones and field erosion.
-
Superior Puncture Protection: A strong reinforced casing combined with cut-and-chip resistant rubber ensures a longer, worry-free service life.
-
Wide Compatibility: Perfectly fits front and rear axles for major brands like John Deere, Massey Ferguson, Case IH, and Kubota.
