How to Choose the Right OTR Tire Pattern (Mud vs Rock) | KOYOOTO
Selecting the correct Off-The-Road (OTR) tire tread pattern is one of the most important factors affecting tire life, machine productivity, and operating costs. Different terrains place different demands on the tire. While muddy conditions require maximum traction and self-cleaning capability, rocky environments demand superior cut resistance and carcass protection.
OTR Tire Pattern Selection Guide
| Working Condition | Recommended Tire Type | Tread Depth | Main Advantage |
|---|---|---|---|
| Mud, Clay, Soft Ground | E-2, G-2, E-3 | Standard (100%) | Excellent traction and self-cleaning |
| Quarry, Gravel, Sharp Rock | E-4, L-4 | Deep Tread (150%) | Enhanced cut and puncture resistance |
| Underground Mining, Severe Rock | L-5, L-5S | Extra Deep Tread (250%) | Maximum protection and wear life |

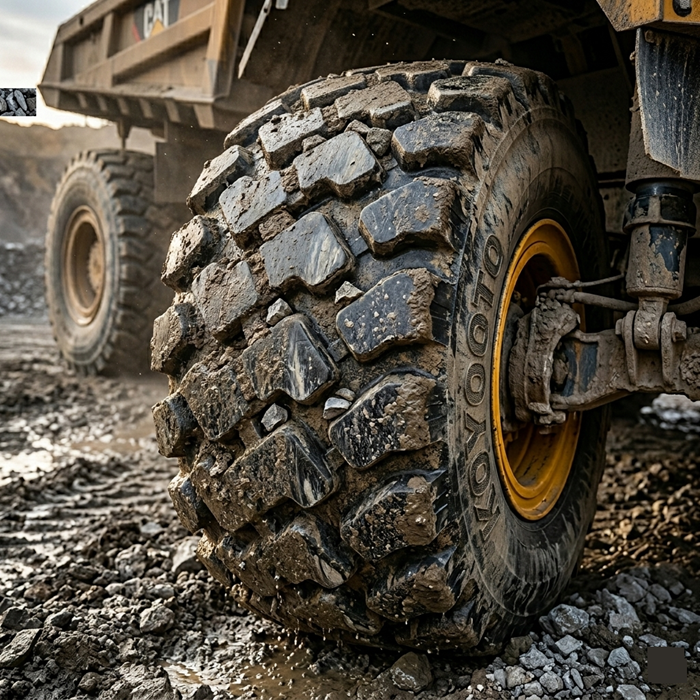

OTR Tires for Mud and Soft Soil
When operating on muddy construction sites, earthmoving projects, or soft mining surfaces, traction becomes the primary concern.
Traction-pattern tires such as E-2, G-2, and E-3 are designed with:
- Wide tread lug spacing
- Aggressive traction blocks
- Excellent self-cleaning capability
- Reduced mud packing
As the tire rotates, mud is expelled from the grooves, maintaining ground contact and minimizing wheel slip. This design improves machine mobility, fuel efficiency, and productivity in wet conditions.
Recommended Applications
- Road construction
- Agricultural earthworks
- Soft-surface mines
- Land clearing projects
- Wet construction sites

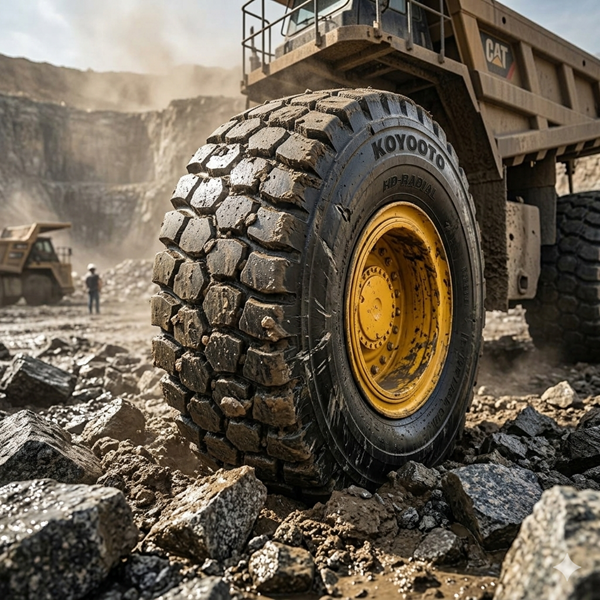

OTR Tires for Rock and Quarry Operations
Rocky environments expose tires to severe cuts, punctures, and impact damage. In these applications, tire protection is more important than maximum traction.
Rock-pattern tires such as E-4, L-4, and L-5 feature:
- Higher rubber volume
- Reduced void ratio
- Thicker undertread protection
- Enhanced resistance to cuts and chunking
The deeper tread design distributes load more evenly and shields the casing from sharp rocks, extending tire service life while reducing downtime.
Recommended Applications
- Quarry operations
- Granite and limestone mines
- Iron ore mines
- Hard-rock excavation
- Aggregate production facilities
Understanding E-3, E-4, and L-5 Tread Depths
| Tire Type | Relative Tread Depth |
|---|---|
| E-3 | 100% (Standard) |
| E-4 / L-4 | 150% of E-3 |
| L-5 / L-5S | 250% of E-3 |
The deeper the tread, the greater the protection against wear, cuts, and impacts. However, deeper tread tires generally generate more heat and are best suited for lower-speed operations.
Conclusion
Choosing the correct OTR tread pattern can significantly improve tire performance and reduce operating costs:
- E-2 / G-2 / E-3 → Best for mud, clay, and soft terrain.
- E-4 / L-4 → Ideal for quarries and mixed rock conditions.
- L-5 / L-5S → Designed for the harshest mining and severe rock applications.
By matching tire design to actual working conditions, operators can maximize traction, extend tire life, and achieve a lower cost per operating hour.
