| 规格 SIZE |
螺栓数 PCD HOLES | 螺孔直径 STUD HOLE DIA. (mm) | 分布圆 P.C.D (mm) |
中心孔 C.B(mm) |
外偏距 OUTSIDE OFFSET (mm) |
内偏距 INSIDE OFFSET (mm) |
载重 MAXLOAD (KG) | 气门嘴 VALVE |
配套轮胎 TIRE |
| 22.5X9.00 | 10 | 26.5 | 335 | 281.2 | 176.5 | 152 | 4125 | 70MS-7 | 12R22.5 |
| 10 | 32.5 | 335 | 281.2 | 176.5 | 152 | 4125 | |||
| 10 | 32.5 SR22 | 335 | 281.2 | 176.5 | 152 | 4125 | |||
| 10 | 26.5 | 285.75 | 221 | 176.5 | 152 | 4125 | |||
| 10 | 32.5 | 285.75 | 221 | 176.5 | 152 | 4125 | |||
| 10 | 32.5 SR22 | 285.75 | 221 | 176.5 | 152 | 4125 | |||
| 10 | 26.5 | 285.75 | 220 | 176.5 | 152 | 4125 | |||
| 10 | 32.5 | 285.75 | 220 | 176.5 | 152 | 4125 | |||
| 10 | 32.5 SR22 | 285.75 | 220 | 176.5 | 152 | 4125 |

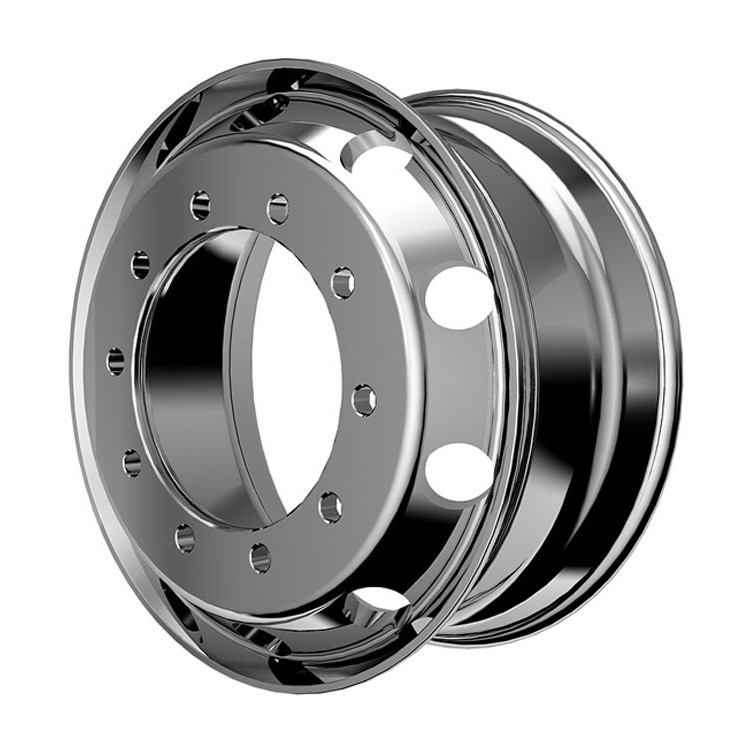

Forged aluminum truck wheel 22.5×9.00
- Light weight: It is only half weight of the same type of steel wheel.
- High strength: Bearing capacity is three times of the same type of steel wheel.
- Fast heat dissipation to extend tire service life. Compared with the steel wheel, the heat dissipation coefficient of aluminum is greater.
- Beautiful appearance: metal primary color, polishing, color ion plating and other surface treatment for users to choose.
- Easy to clean: smooth surface, can be washed with water, after a long time, can be polished again and take on a new look.
- Excellent dynamic balance: due to the processing of one machine, high dynamic balance accuracy, smooth driving, tire is not easy to abnormal wear.
- Long service life.
Forged aluminum truck wheel 22...
